| Swing over bed | 1265 mm (50") |
| Bed width / Auxiliary guide | 700 mm (57.6") / 850 mm (33.5”) |
| Swing over cross slide (Full length) | 850 mm (33.5") |
| Spindle nose | |
| X axis travel | 730 mm (28.7") |
| Z axis travel | 1~8M: 1300 mm (51.18") - 8300 mm (326.777") 9~10M: 9150 mm (360.24") - 10150 mm (399.6") |
| Tailstock center | MT6 |
OPTIONS

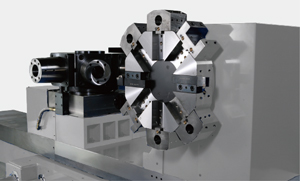

DOUBLE TURRETS

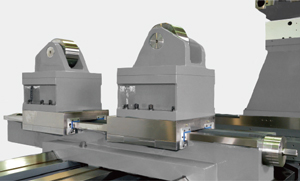

ROLLER SUPPORT BRACKET

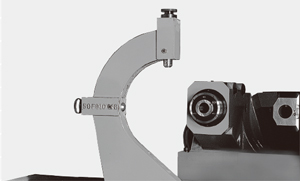

FOLLOW REST (3 V BED WAY)

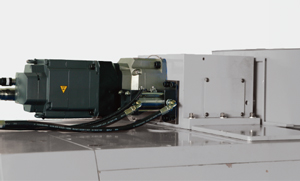

C AXIS GEAR SYSEM WITH REDUCER

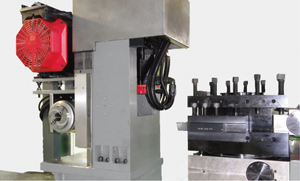

Y AXIS & MILLING DEVICE

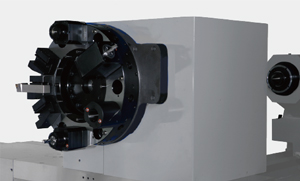

DRIVING TOOL TURRET
ROTATE QUILL TAILSTOCK
The higher rigidity rotated quill-type tailstock has bigger bearings than the live center.
