HAH series

Features

  • Heavy Duty CNC lathe, high power output spindle box, high rigidity, and high stability bed design with highly customized ability and provide a variety of functions for higher production performance.
  • HAH has longer headstock and spinde, wider and bigger support bearing and transfer gears, also has bigger gear ratio, so HAI-I has higher rigigidity ad torque than HAN.

Swing over bed 1560 mm (61")
Bed width / Auxiliary guide 1020 mm (40") / 1170 mm (46”)
Swing over cross slide (Full length) 1110 mm (43.7")
Spindle nose A2-15
X axis travel (Half length cross slide) 600 m
m (23.6")
Z axis travel 2150 mm (45.3") – 14150 mm (557")
Tailstock center MT6

OPTIONAL

HYDRAULIC DISK BRAKE
AND REAR CHUCK ADAPTOR

GRINDING DEVICE
(TURRET TYPE)

HEAVY CUTTING
MILLING HEAD

BORING BAR AND HOLDER

HYD. STEADY REST

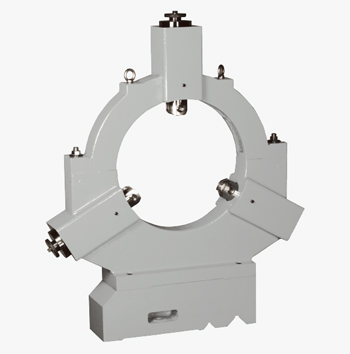

STEADY REST
